Measurement and inspection systems

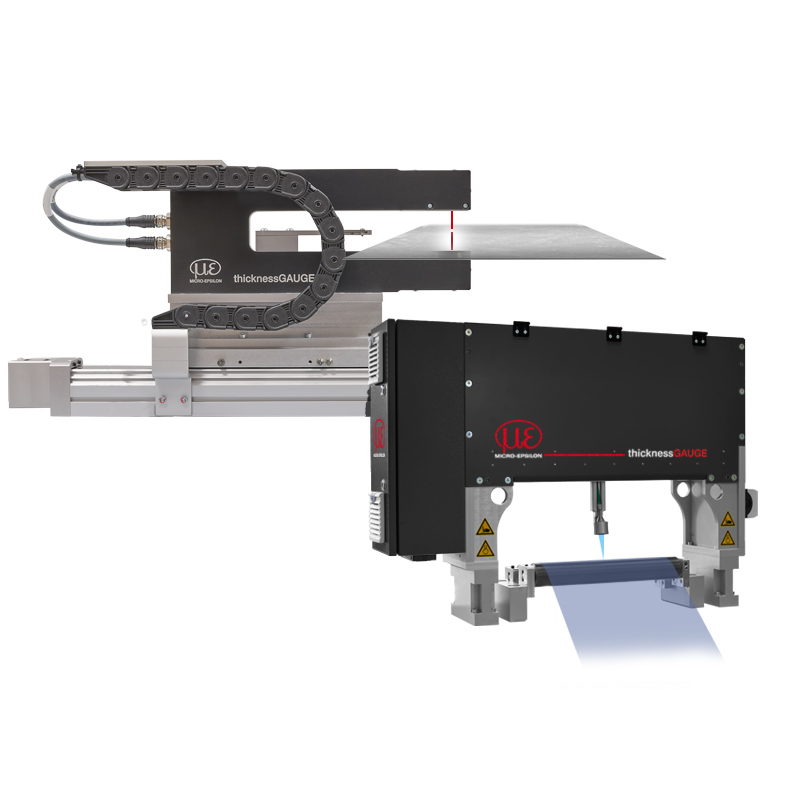

thicknessGAUGE-anturijärjestelmiä käytetään enintään 50 mm:n nauhamateriaalien ja levyjen tarkkaan paksuuden mittaamiseen. Useat mallit erilaisilla anturityypeillä, mittausalueilla ja mittausleveyksillä mahdollistavat erilaisten materiaalien ja pintojen inline-paksuusmittaukset erinomaisella hinta-tehokkuussuhteella.

Tähän valmiiseen järjestelmään kuuluu tukeva runko, johon on kiinnitetty kaksi optista etäisyysanturia, jotka tunnistavat mitattavan kohteen paksuuden erotusperiaatteella. Anturit linjataan täydellisesti toisiinsa nähden asennusolosuhteiden mukaisesti. Lisäksi tehtaalla tehtävä paksuuden kalibrointi mahdollistaa tarkat paksuuden mittaukset.

Lineaariakseli siirtää anturijärjestelmän paikoitusasennosta mittausasentoon. Mittausstandardi täysin automaattiselle kalibroinnille on paikoitusasento.

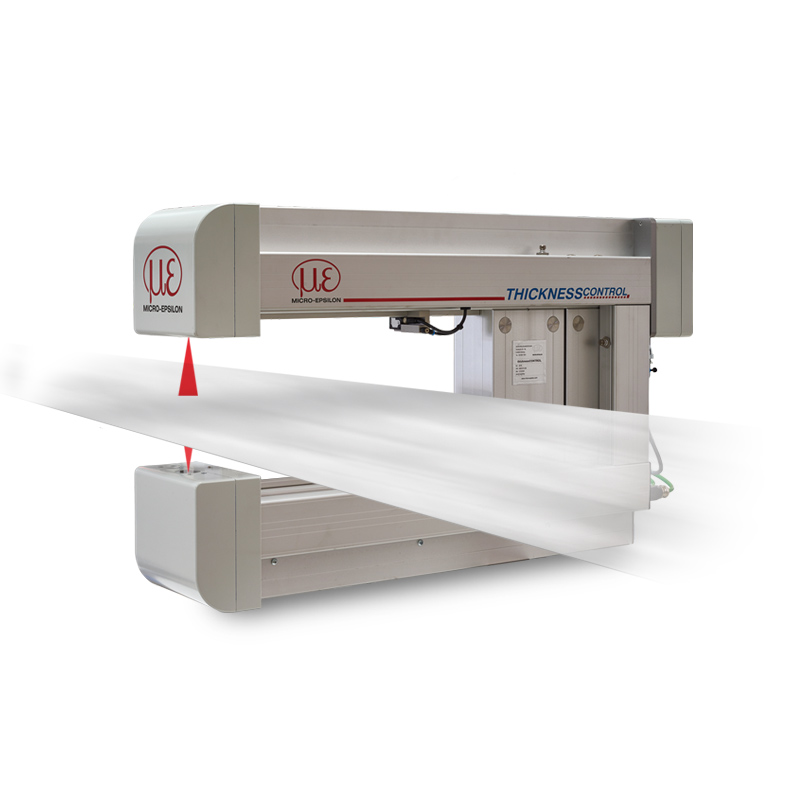

For the steel and aluminum industry, Micro-Epsilon offers innovative measuring and inspection systems for thickness, profile and surface measurements. Performance and quality, as well as reliability of products and services have made Micro-Epsilon one of the leading suppliers of inspection systems for optical thickness measurement used in the metals industry.

Our non-contact thickness measuring systems are used wherever high-precision thickness monitoring is required for control and quality assurance. Both in hot rolling mills, in continuous casting plants and in cold rolling mills and service centers, the Micro-Epsilon measuring systems operate reliably and with maximum precision. Numerous, successful installations in 13 countries around the world in milling lines and processing lines speak for themselves.

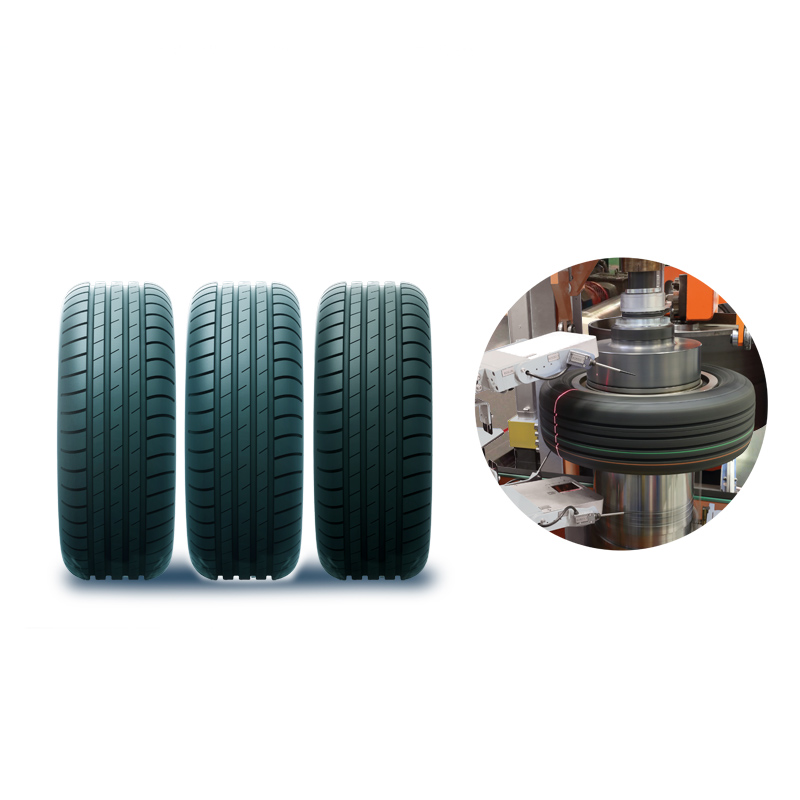

The rubber processing industry, as well as the tire production process is supported by Micro-Epsilon with a range of systems for inspection, monitoring and control of miscellaneous processes.

Preparation Area

Inline weight inspection of running tread profiles for passenger and truck tires

Tire geometry inline inspection in TU machines

Non-contact inline profile measurement of inner liner material (thickness 1mm to 18mm)

Non-contact inline profile measurement of tread strips (thickness <1mm to 18mm)

Non-contact offline profile thickness measurement of tread strips and side wall material

Non-contact inline length measurement of tread strips

Inline inspection of color codes on treads, width measurement included

Final Finishing

Measuring the tire profile width in extrusion lines

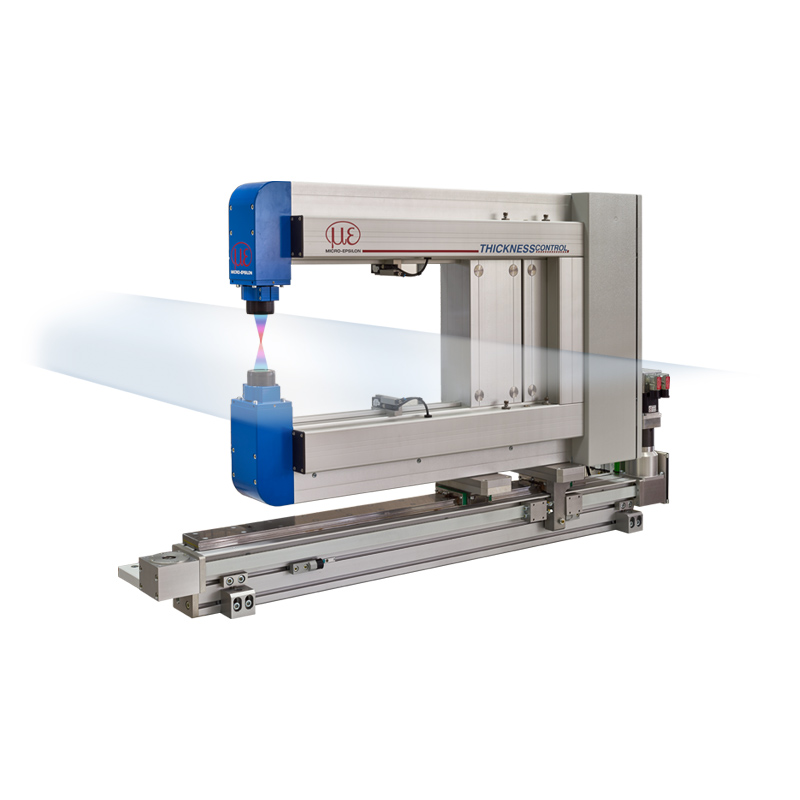

Gauges and inspection systems from Micro-Epsilon are used in the plastics processing industry in order to ensure efficient production.

Application fields:

Film extrusion

Thickness profile measurement of blown films (non-contact and contact measurement 10µm to 500µm)

Thickness measurement in flat film extrusion lines (thickness 30µm to 6mm)

Non-contact thickness measurement of thermoformed flat films (thickness 0.1mm to 6mm)

Non-contact thickness measurement in hot melt calender lines (thickness 30µm to 6mm)

and machine building

Non-contact inline profile thickness measurement of calenders (thickness 0.3mm to 18mm)

Non-contact inline profile thickness measurement of roller head installations (thickness 0.3mm to 18mm)
